Technical Details

ACT® Registered Certification Marks
Flammability Wet/Dry Crocking Colorfastness to Light Physical Properties Abrasion High-Traffic
Application
Upholstery, Indoor
Content
100% PVC Vinyl
Backing
Brushed Polyester Knit
Finish / Topcoat
Resilience TX Soil/Stain Protection
Weight
32.0 oz./yd.
Width
54.000"

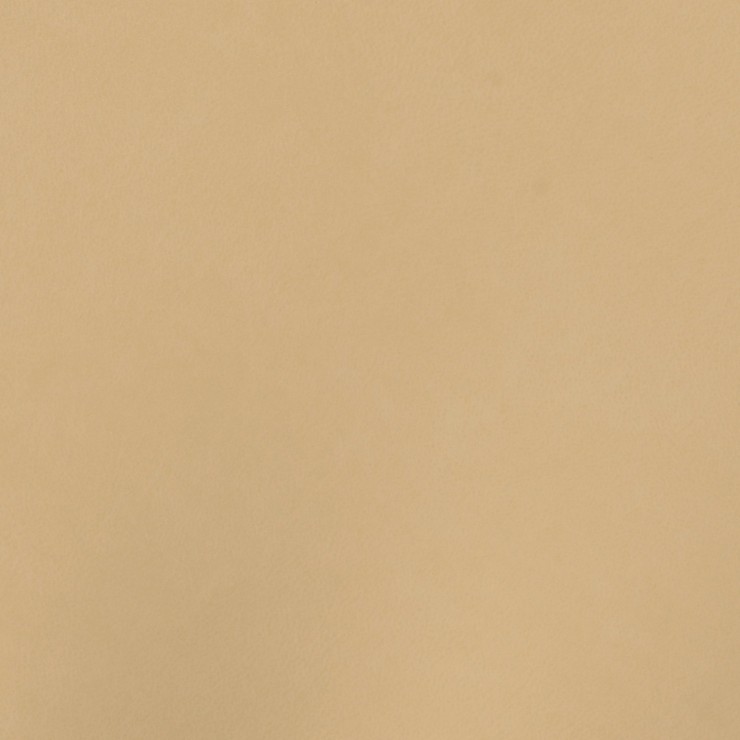

Fabric Shown
Up the Roll
Origin
Taiwan
Collection
Vinyl Binder

Abrasion Resistance ASTM D4157
500,000 Double Rubs
Break Strength ASTM D751-06
Warp: 128 lbs / Weft: 93 lbs
Tear Strength, Tongue Tear ASTM D751-06
Warp: 7.7 lbs / Weft: 6.8 lbs
Tear Strength, Tack/Trap Tear ASTM D751-06
Warp: 51 lbs / Weft: 37.8 lbs
Wet Crocking AATCC 8
Grade: 5
Dry Crocking AATCC 8
Grade: 5
Colorfastness to Light AATCC 16 (Hours/Grade)
Hours: 200 / Grade: 4
Adhesion of Coating ASTM D751
Warp: 4.3 lbs / Weft: 3.9 lbs
Cold Crack -20 Degrees

  • FMVSS 302
  • UFAC Class 1
  • CA Technical Bulletin 117-2013
  • NFPA 260
"Flammability" and any corresponding data refer to the typical performance in the tests indicated and should not be construed to imply the behavior of this or any other material under actual fire conditions.

  • Prop 65 Compliant
  • California AB-2998 Compliant
